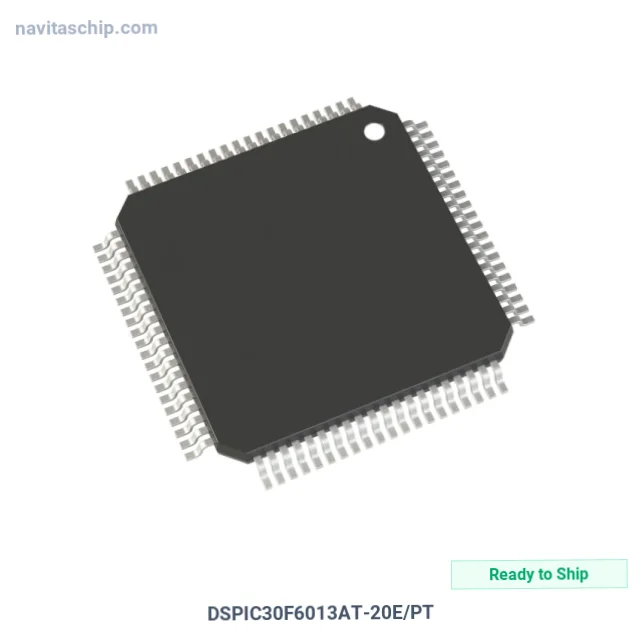

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DSPIC30F6013AT-20E/PT |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-964210 |
| Description | IC MCU 16BIT 132KB FLASH 80TQFP |
| Spec | 80-TQFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Speed | 20 MIPS |
| Connectivity | CANbus, I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| Number of I/O | 68 |
| Program Memory Size | 132KB (44K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-TQFP (12x12) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology DSPIC30F6013AT-20E/PT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DSPIC30F6013AT-20E/PT is a Microcontroller (MCU) manufactured by Microchip Technology (Microchip). Integrated Circuit Microcontroller 16bit 132kb Flash Memory in 80-Pin TQFP Package, housed in a compact 80-TQFP (12x12) package. Originally developed by Maxim Integrated, this component continues to be fully supported.
