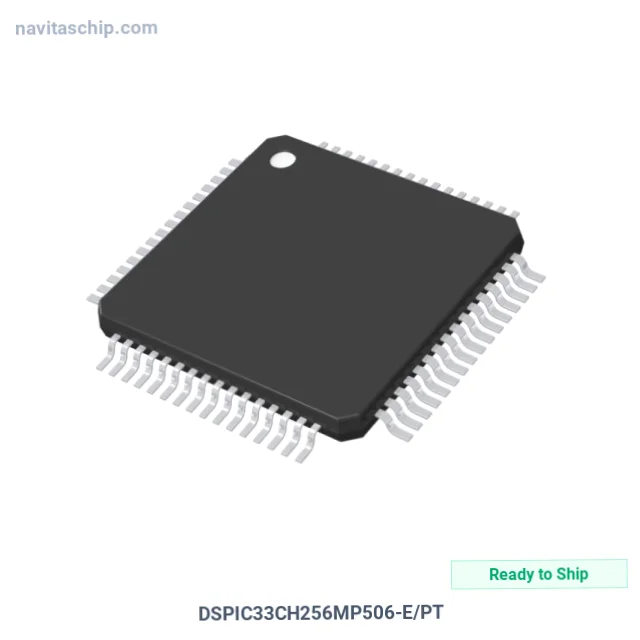

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DSPIC33CH256MP506-E/PT |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-9757699 |
| Description | IC MCU 16BIT 328KB FLASH 64TQFP |
| Spec | 64-TQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Core Processor | dsPIC |
| Core Size | 16-Bit Dual-Core |
| Speed | 180MHz, 200MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT |
| Number of I/O | 53 |
| Program Memory Size | 328kB (328k x 8) |
| Program Memory Type | FLASH, PRAM |
| RAM Size | 48K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 34x12b; D/A 4x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-TQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology DSPIC33CH256MP506-E/PT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DSPIC33CH256MP506-E/PT is a Microcontroller (MCU) manufactured by Microchip Technology (Microchip). Integrated Circuit Microcontroller 16bit 328kb Flash Memory in 64-Pin TQFP Package, housed in a compact 64-TQFP (10x10) package. Originally developed by Maxim Integrated, this component continues to be fully supported.
