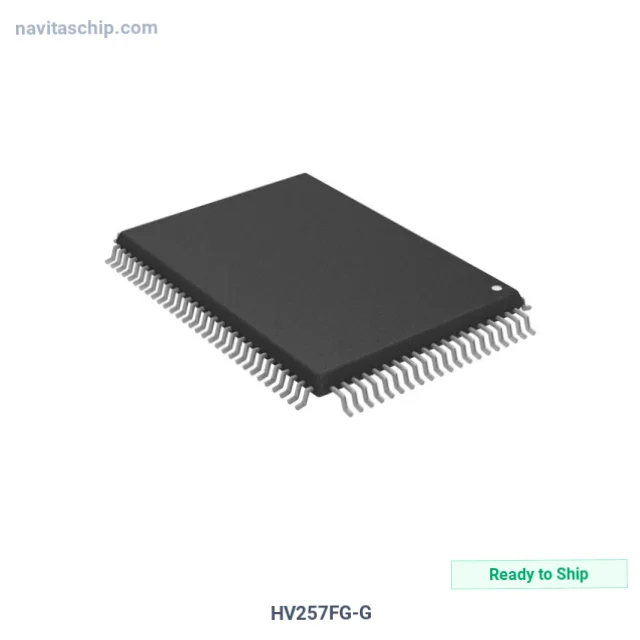

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HV257FG-G |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-4902470 |
| Description | IC OPAMP GP 32 CIRCUIT 100MQFP |
| Spec | 100-BQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 32 |
| Slew Rate | 2.2V/µs |
| -3db Bandwidth | 4 kHz |
| Voltage - Input Offset | 20 mV |
| Current - Output / Channel | 500 µA |
| Voltage - Supply Span (Min) | 7.5 V |
| Voltage - Supply Span (Max) | 300 V |
| Operating Temperature | -10°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-MQFP (20x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology HV257FG-G Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HV257FG-G is an Operational Amplifier (Op Amp) manufactured by Microchip Technology (Microchip). Integrated Circuit Operational Amplifier Gp 32 Circuit 100mqfp, housed in a compact 100-MQFP (20x14) package.
Don't let long factory lead times slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -10°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 100-BQFP
- Device Package: 100-MQFP (20x14)
- RoHS Compliant
Applications
Widely adopted for:
- consumer electronics
- INA199, INA240 and MAX4376 current sense amplifier replacement for legacy battery management designs
- high-side and low-side current sensing for lithium battery packs, BMS and brushless motor phase monitoring
Why Choose NavitasChip for HV257FG-G?
NavitasChip offers specialized sourcing for end-of-life and obsolete components for the HV257FG-G and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
HV257FG-G sourced and shipped via our Asia-Pacific distribution network.
HV257FG-G - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
