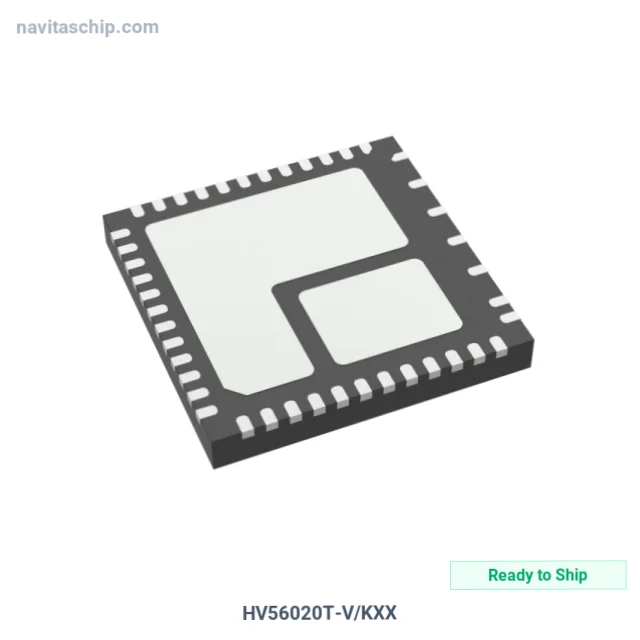

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HV56020T-V/KXX |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-12081911 |
| Description | IC OPAMP GP 2 CIRCUIT 43VQFN |
| Spec | 43-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Microchip Technology |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Slew Rate | 0.09V/µs |
| -3db Bandwidth | 124 Hz |
| Voltage - Input Offset | 110 mV |
| Voltage - Supply Span (Min) | 6 V |
| Voltage - Supply Span (Max) | 7 V |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 43-VQFN (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology HV56020T-V/KXX Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HV56020T-V/KXX is an Operational Amplifier (Op Amp) manufactured by Microchip Technology (Microchip). Integrated Circuit Operational Amplifier General Purpose 2 Circuit 43vqfn, housed in a compact 43-VQFN (7x7) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 43-VFQFN Exposed Pad
- Device Package: 43-VQFN (7x7)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
