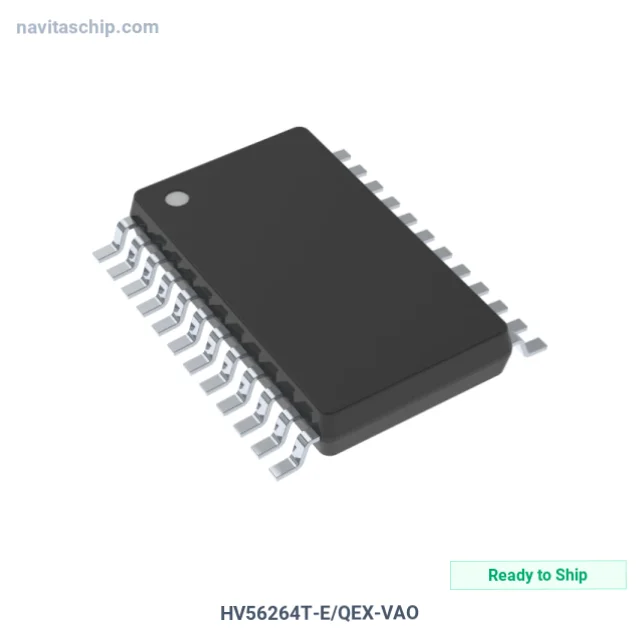

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | HV56264T-E/QEX-VAO |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-13622898 |
| Description | 4-CH HV AMP 250V TSSOP |
| Spec | 24-TSSOP (0.173", 4.40mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 4 |
| Slew Rate | 11V/µs |
| -3db Bandwidth | 150 kHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology HV56264T-E/QEX-VAO Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The HV56264T-E/QEX-VAO is an Operational Amplifier (Op Amp) manufactured by Microchip Technology (Microchip). 4-Ch Hv Amplifier 250V Supply TSSOP, housed in a compact 24-TSSOP package.
In today's market, production line down can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 24-TSSOP (0.173", 4.40mm Width)
- Device Package: 24-TSSOP
- RoHS Compliant
Applications
Commonly utilized in:
- zero-drift, chopper-stabilized and auto-zero op amp for ultra-low-offset precision sensing
- low-noise op amp with low input voltage and current noise for high-resolution analog front-ends
- high-voltage op amp rated 36 V to 60 V for industrial sensor front-ends and motor control
Why Choose NavitasChip for HV56264T-E/QEX-VAO?
NavitasChip offers cost-effective alternative to authorized distributors for the HV56264T-E/QEX-VAO and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for HV56264T-E/QEX-VAO with regional warehouse support.
HV56264T-E/QEX-VAO - Check our competitive price now.
