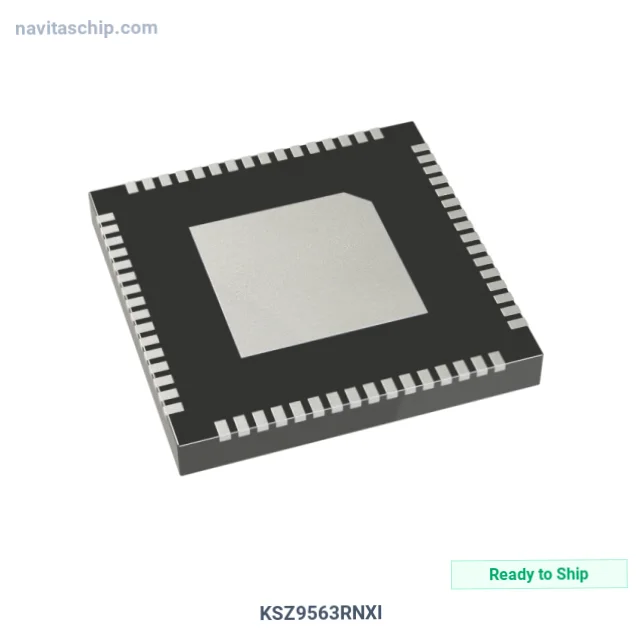

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | KSZ9563RNXI |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-8536634 |
| Description | IC ETHERNET SWITCH MII 64VQFN |
| Spec | 64-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Protocol | Ethernet |
| Function | Switch |
| Interface | MII, RMII, RGMII |
| Standards | 10/100/1000 Base-T PHY |
| Voltage - Supply | 3.135V ~ 3.465V |
| Current - Supply | 250mA |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 64-QFN (8x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology KSZ9563RNXI Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The KSZ9563RNXI is an Interface Controller IC manufactured by Microchip Technology (Microchip). Integrated Circuit Ethernet Switch Mii 64vqfn, housed in a compact 64-QFN (8x8) package, with 3.135V ~ 3.465V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.135V ~ 3.465V
- Interface: MII, RMII, RGMII
- Operating Temperature: -40°C ~ 85°C
- Package: 64-VFQFN Exposed Pad
- Device Package: 64-QFN (8x8)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
