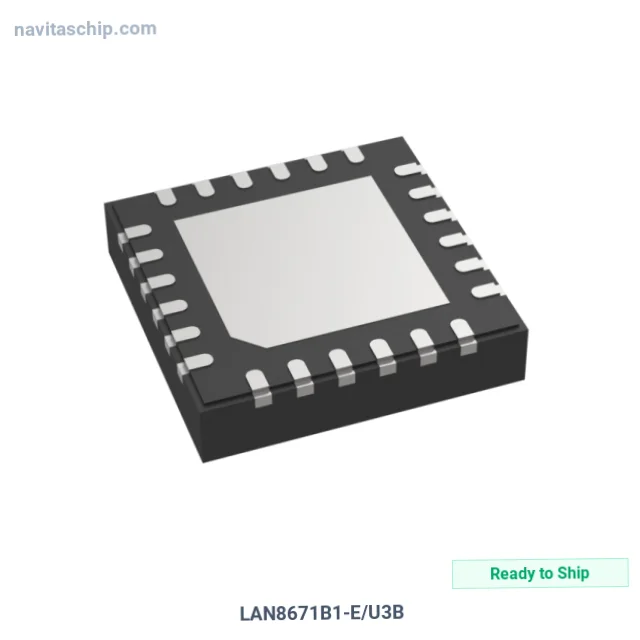

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LAN8671B1-E/U3B |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-15189113 |
| Description | IC TXRX FULL/HALF 1/1 24VQFN |
| Spec | 24-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Obsolete |
| Type | Transceiver |
| Protocol | Ethernet |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Full, Half |
| Receiver Hysteresis | 230 mV |
| Data Rate | 10Mbps |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 24-VQFN (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology LAN8671B1-E/U3B Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LAN8671B1-E/U3B is an Interface Driver Receiver Transceiver IC manufactured by Microchip Technology (Microchip). Integrated Circuit Transceiver Full/half 1/1 24vqfn, housed in a compact 24-VQFN (4x4) package, with 3.135V ~ 3.465V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.135V ~ 3.465V
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount, Wettable Flank
- Package: 24-VFQFN Exposed Pad
- Device Package: 24-VQFN (4x4)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
