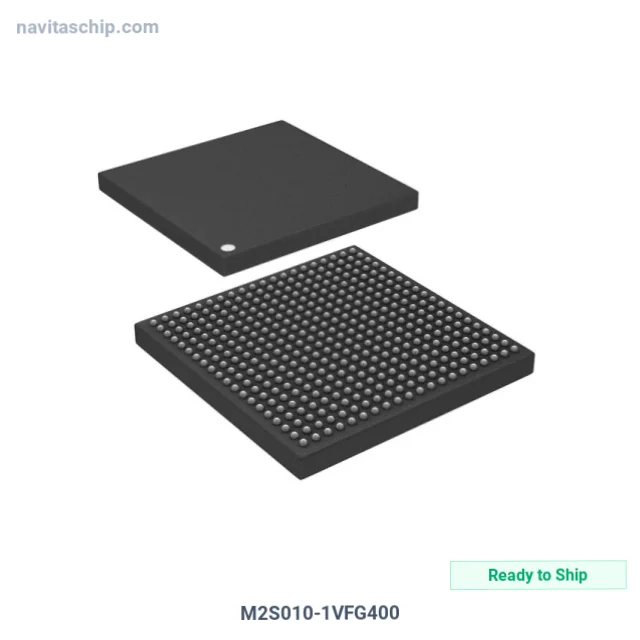

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | M2S010-1VFG400 |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-4294195 |
| Description | IC SOC CORTEX-M3 166MHZ 400VFBGA |
| Spec | 400-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | System On Chip (SoC) |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Architecture | MCU, FPGA |
| Core Processor | ARM® Cortex®-M3 |
| Flash Size | 256KB |
| RAM Size | 64KB |
| Peripherals | DDR, PCIe, SERDES |
| Connectivity | CANbus, Ethernet, I2C, SPI, UART/USART, USB |
| Speed | 166MHz |
| Primary Attributes | FPGA - 10K Logic Modules |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Supplier Device Package | 400-VFBGA (17x17) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology M2S010-1VFG400 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The M2S010-1VFG400 is a System-on-Chip (SoC) with Programmable Logic manufactured by Microchip Technology (Microchip). Integrated Circuit System On Chip Cortex-M3 operating at 166MHz in 400-Pin BGA Package, housed in a compact 400-VFBGA (17x17) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 85°C (TJ)
- Package: 400-LFBGA
- Device Package: 400-VFBGA (17x17)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
