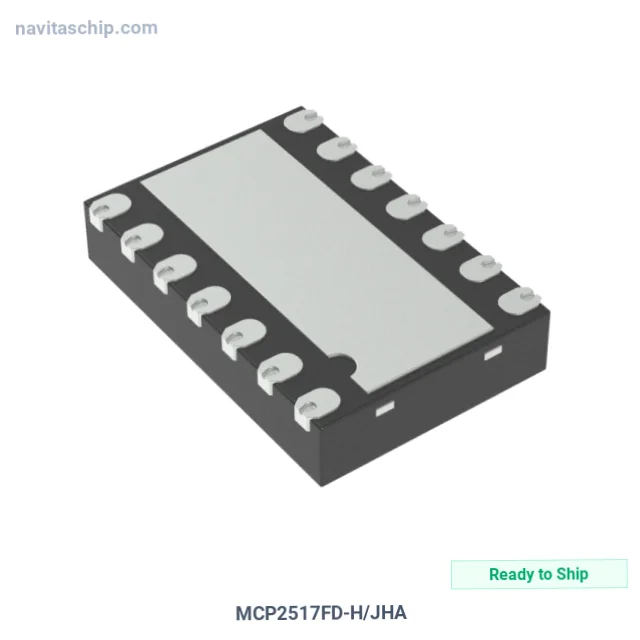

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP2517FD-H/JHA |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-7691347 |
| Description | IC CANBUS CONTROLLER SPI 14VDFN |
| Spec | 14-VDFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Microchip Technology |
| Package | Tube |
| Product Status | Active |
| Protocol | CANbus |
| Function | Controller |
| Interface | SPI |
| Standards | CAN 2.0 |
| Voltage - Supply | 2.7V ~ 5.5V |
| Current - Supply | 20mA |
| Operating Temperature | -40°C ~ 150°C |
| Supplier Device Package | 14-VDFN (4.5x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP2517FD-H/JHA Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP2517FD-H/JHA is an Interface Controller IC manufactured by Microchip Technology (Microchip). Integrated Circuit Canbus Controller SPI in 14-Pin DFN Package, housed in a compact 14-VDFN (4.5x3) package, with 2.7V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.7V ~ 5.5V
- Interface: SPI
- Operating Temperature: -40°C ~ 150°C
- Package: 14-VDFN Exposed Pad
- Device Package: 14-VDFN (4.5x3)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
