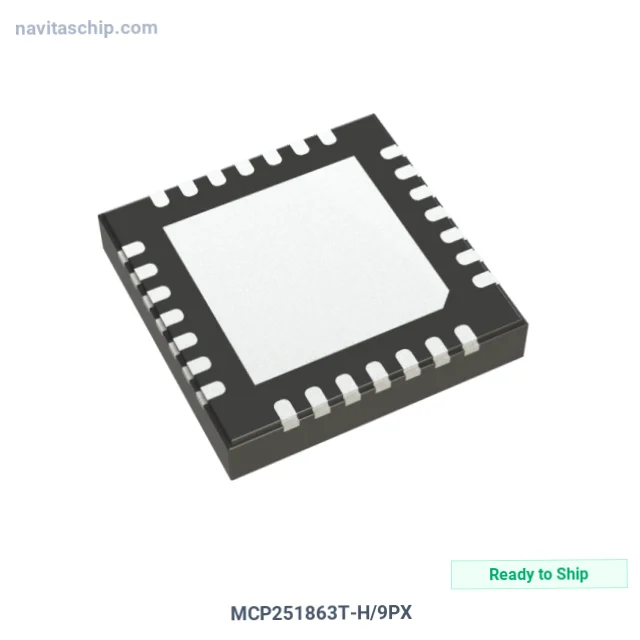

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP251863T-H/9PX |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-15985641 |
| Description | STAND-ALONE LOW POWER CAN FD CON |
| Spec | 28-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Protocol | CAN |
| Function | Controller |
| Interface | SPI |
| Standards | CAN 2.0 |
| Voltage - Supply | 2.7V ~ 5.5V, 4.5V ~ 5.5V |
| Current - Supply | 20mA |
| Operating Temperature | -40°C ~ 150°C |
| Supplier Device Package | 28-VQFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP251863T-H/9PX Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP251863T-H/9PX is an Interface Controller IC manufactured by Microchip Technology (Microchip). Stand-Alone Low Power CAN Bus Fd Con, housed in a compact 28-VQFN (5x5) package, with 2.7V ~ 5.5V, 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.7V ~ 5.5V, 4.5V ~ 5.5V
- Interface: SPI
- Operating Temperature: -40°C ~ 150°C
- Package: 28-VFQFN Exposed Pad
- Device Package: 28-VQFN (5x5)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
