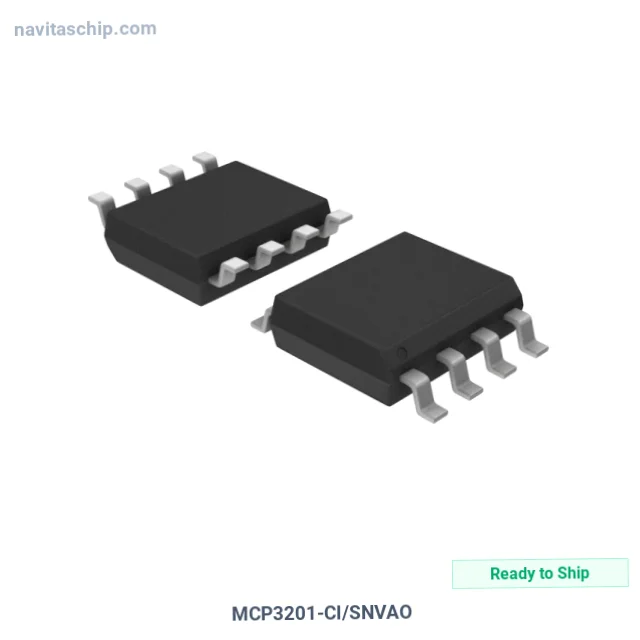

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP3201-CI/SNVAO |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-19916488 |
| Description | 12-BIT ADC, SPI, SINGLE CHANNEL |
| Spec | 8-SOIC (0.154", 3.90mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Microchip Technology |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential |
| Data Interface | 3-Wire Serial, SPI |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP3201-CI/SNVAO Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP3201-CI/SNVAO is an Analog-to-Digital Converter (ADC) manufactured by Microchip Technology (Microchip). 12-Bit Analog-To-Digital Converter, housed in a compact 8-SOIC package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width)
- Device Package: 8-SOIC
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
