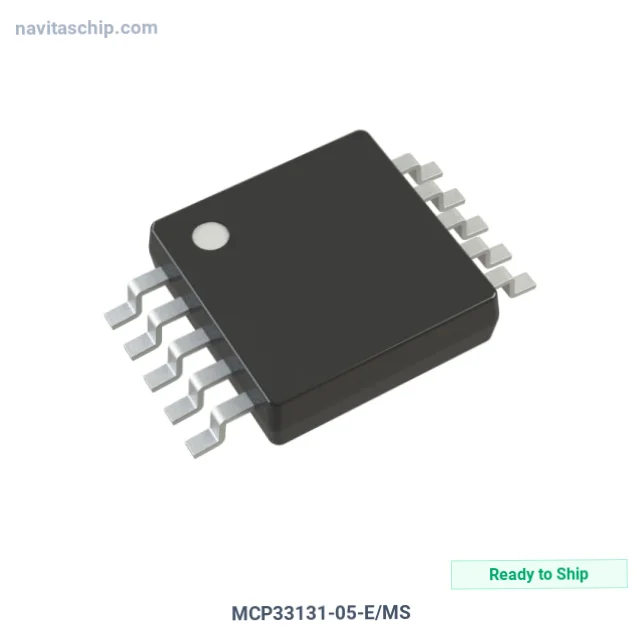

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP33131-05-E/MS |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-9757738 |
| Description | IC ADC 16BIT SAR 10MSOP |
| Spec | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Microchip Technology |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 10-MSOP |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP33131-05-E/MS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP33131-05-E/MS is an Analog-to-Digital Converter (ADC) manufactured by Microchip Technology (Microchip). Integrated Circuit Analog-To-Digital Converter 16bit Sar in 10-Pin MSOP Package, housed in a compact 10-MSOP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Device Package: 10-MSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
