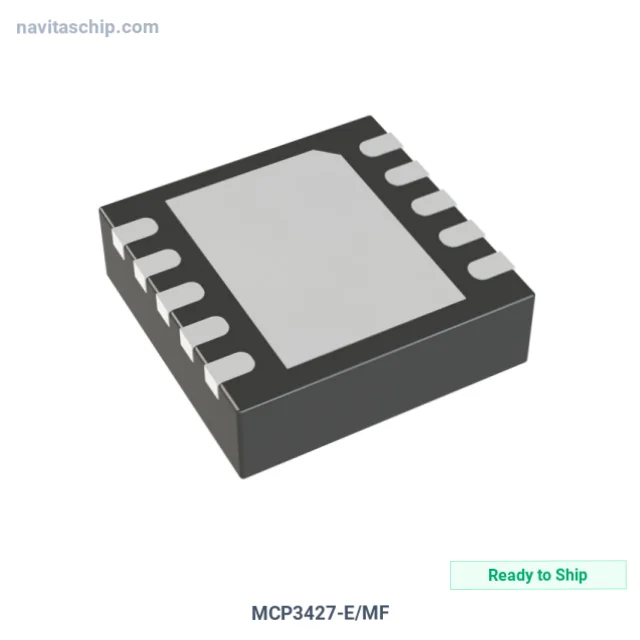

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP3427-E/MF |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-2179128 |
| Description | IC ADC 16BIT SIGMA-DELTA 10DFN |
| Spec | 10-VFDFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Microchip Technology |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 15 |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | MUX-PGA-ADC |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | PGA, Selectable Address |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 10-DFN (3x3) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP3427-E/MF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP3427-E/MF is an Analog-to-Digital Converter (ADC) manufactured by Microchip Technology (Microchip). Integrated Circuit Analog-To-Digital Converter 16bit Sigma-Delta in 10-Pin DFN Package, housed in a compact 10-DFN (3x3) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 10-VFDFN Exposed Pad
- Device Package: 10-DFN (3x3)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
