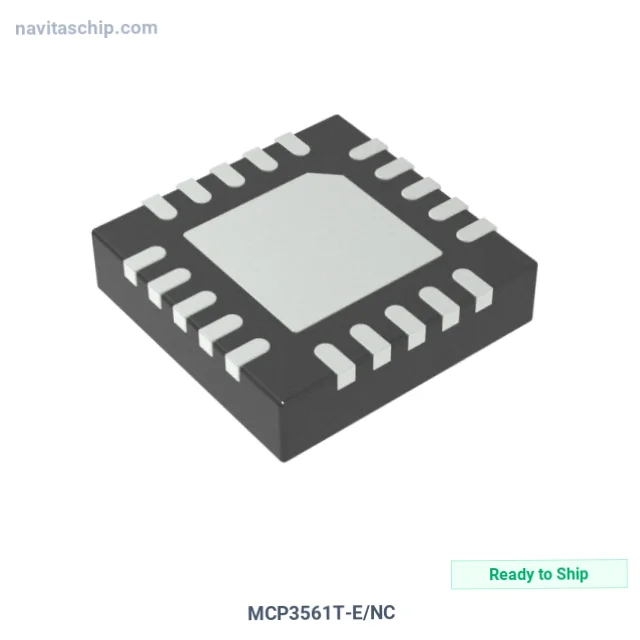

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP3561T-E/NC |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-9947522 |
| Description | IC ADC 24BIT SIGMA-DELTA 20UQFN |
| Spec | 20-UFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 153.6k |
| Number of Inputs | 1, 2 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Features | Internal Oscillator, PGA, Temperature Sensor |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 20-UQFN (3x3) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP3561T-E/NC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP3561T-E/NC is an Analog-to-Digital Converter (ADC) manufactured by Microchip Technology (Microchip). Integrated Circuit Analog-To-Digital Converter 24bit Sigma-Delta 20uqfn, housed in a compact 20-UQFN (3x3) package. Commercial temperature range (0°C to +70°C).
