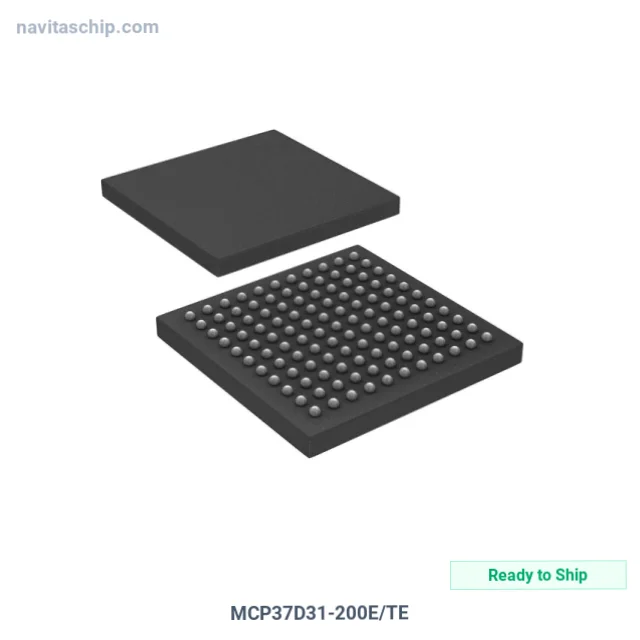

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP37D31-200E/TE |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-11588610 |
| Description | IC ADC 16BIT PIPELINED 121TFBGA |
| Spec | 121-TFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 200M |
| Number of Inputs | 1, 2, 4, 8 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.14V ~ 1.89V |
| Voltage - Supply, Digital | 1.14V ~ 1.89V |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 121-TFBGA (8x8) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP37D31-200E/TE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP37D31-200E/TE is an Analog-to-Digital Converter (ADC) manufactured by Microchip Technology (Microchip). Integrated Circuit Analog-To-Digital Converter 16bit Pipelined in 121-Pin BGA Package, housed in a compact 121-TFBGA (8x8) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 121-TFBGA
- Device Package: 121-TFBGA (8x8)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
