| Manufacturer Product Number | MCP47A1T-A0E/LT |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-3674561 |
| Description | IC DAC 6BIT V-OUT SC70-6 |
| Spec | 6-TSSOP, SC-88, SOT-363 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Number of Bits | 6 |
| Number of D/A Converters | 1 |
| Settling Time | 15µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | I2C |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| INL/DNL (LSB) | ±0.25, ±0.25 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | SC-70-6 |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP47A1T-A0E/LT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

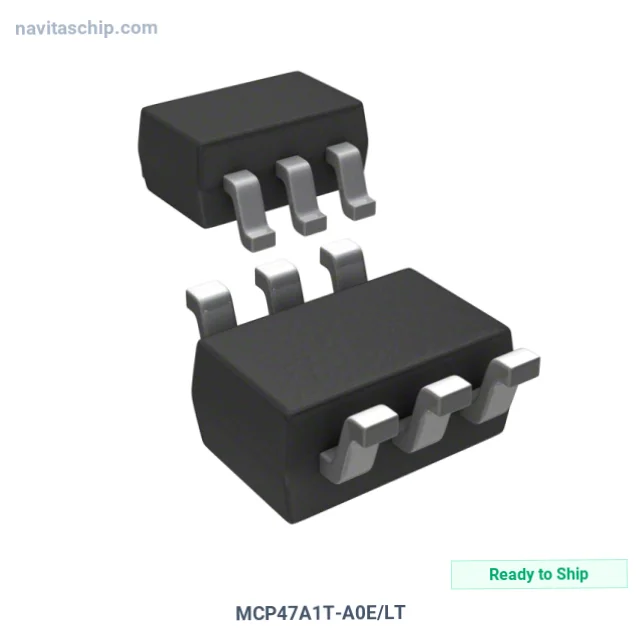

The MCP47A1T-A0E/LT is a Digital-to-Analog Converter (DAC) manufactured by Microchip Technology (Microchip). Integrated Circuit Digital-To-Analog Converter 6bit V-Out in 70-Pin Sc Package-6, housed in a compact SC-70-6 package.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 6-TSSOP, SC-88, SOT-363
- Device Package: SC-70-6
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
