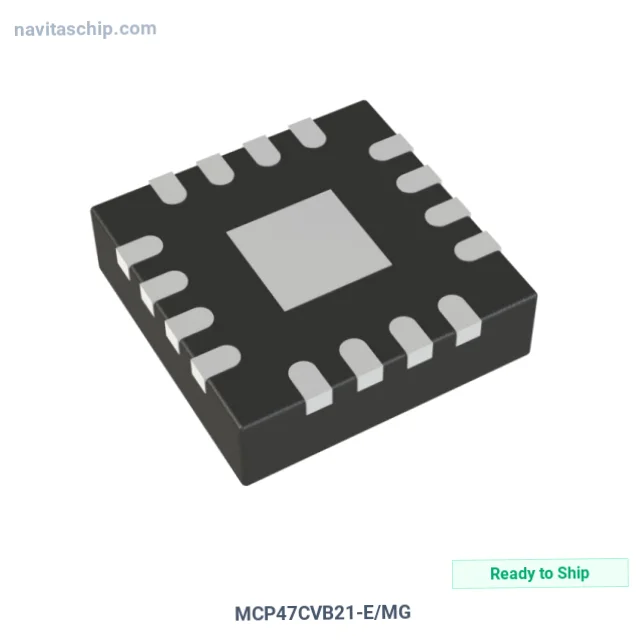

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP47CVB21-E/MG |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-9867273 |
| Description | IC DAC 12BIT V-OUT 16QFN |
| Spec | 16-VFQFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Microchip Technology |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 16µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | Yes |
| Data Interface | I2C |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.8V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| INL/DNL (LSB) | ±1, ±1 |
| Architecture | Current Source |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 16-QFN (3x3) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP47CVB21-E/MG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP47CVB21-E/MG is a Digital-to-Analog Converter (DAC) manufactured by Microchip Technology (Microchip). Integrated Circuit Digital-To-Analog Converter 12bit V-Out in 16-Pin QFN Package, housed in a compact 16-QFN (3x3) package.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 16-VFQFN Exposed Pad
- Device Package: 16-QFN (3x3)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
