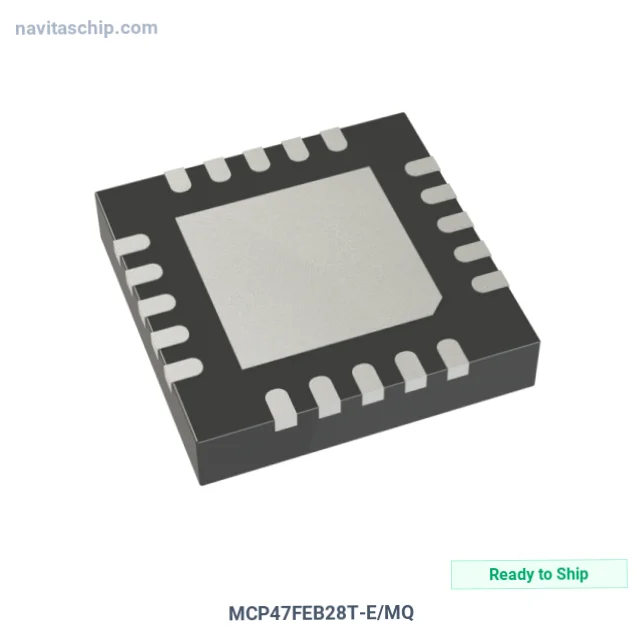

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP47FEB28T-E/MQ |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-12663980 |
| Description | IC DAC 12BIT V-OUT 20VQFN |
| Spec | 20-VQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 8 |
| Settling Time | 7.8µs (Typ) |
| Output Type | Voltage - Buffered, Voltage - Unbuffered |
| Differential Output | No |
| Data Interface | I2C |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1.5LSB, ±0.2 |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 20-VQFN (5x5) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP47FEB28T-E/MQ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP47FEB28T-E/MQ is a Digital-to-Analog Converter (DAC) manufactured by Microchip Technology (Microchip). Integrated Circuit Digital-To-Analog Converter 12bit V-Out 20vqfn, housed in a compact 20-VQFN (5x5) package.
Key Technical Specifications
- Output Type: Voltage - Buffered, Voltage - Unbuffered
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 20-VQFN Exposed Pad
- Device Package: 20-VQFN (5x5)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
