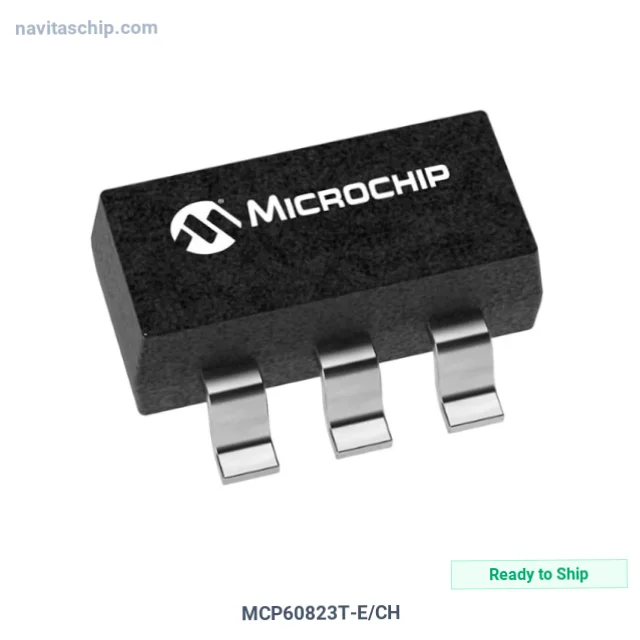

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP60823T-E/CH |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-24818370 |
| Description | SINGLE, 25MHZ OP AMP W/ STDN, E |
| Spec | SOT-23-6 |
| Package | Tape & Reel (TR) |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| Slew Rate | 30V/µs |
| Gain Bandwidth Product | 25 MHz |
| Voltage - Input Offset | 50 µV |
| Current - Supply | 2.5mA |
| Voltage - Supply Span (Min) | 2.2 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-6 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP60823T-E/CH is an Operational Amplifier (Op Amp) manufactured by Microchip Technology (Microchip). Single, housed in a compact SOT-23-6 package.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: SOT-23-6
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
