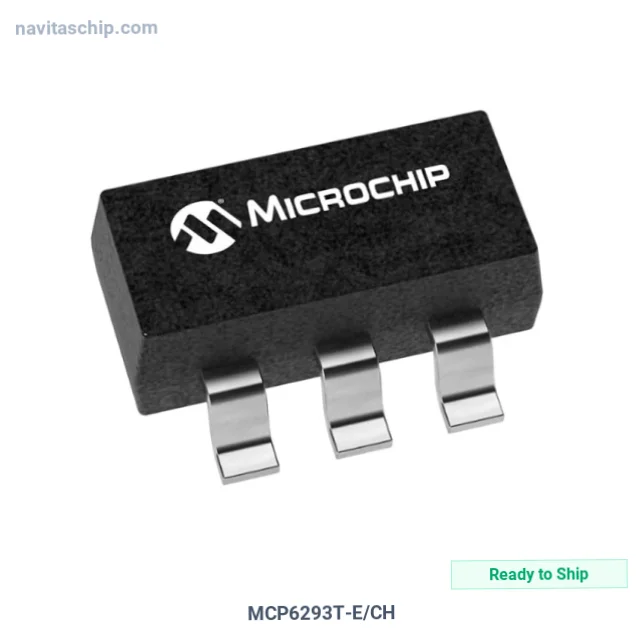

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP6293T-E/CH |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-857504 |
| Description | IC OPAMP GP 1 CIRCUIT SOT23-6 |
| Spec | SOT-23-6 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 7V/µs |
| Gain Bandwidth Product | 10 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 1mA |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 2.4 V |
| Voltage - Supply Span (Max) | 6 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-6 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP6293T-E/CH Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP6293T-E/CH is an Operational Amplifier (Op Amp) manufactured by Microchip Technology (Microchip). Integrated Circuit Operational Amplifier General Purpose 1 Circuit in 6-Pin SOT23 Package, housed in a compact SOT-23-6 package.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: SOT-23-6
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
