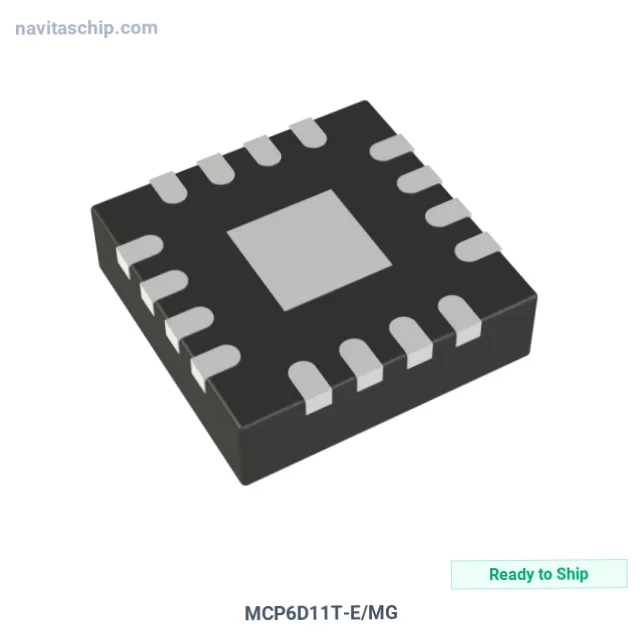

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP6D11T-E/MG |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-9867118 |
| Description | IC OPAMP DIFF 1 CIRCUIT 16QFN |
| Spec | 16-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Differential |
| Number of Circuits | 1 |
| Output Type | Differential, Rail-to-Rail |
| Slew Rate | 25V/µs |
| Gain Bandwidth Product | 90 MHz |
| Current - Supply | 1.4mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-QFN (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP6D11T-E/MG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP6D11T-E/MG is an Operational Amplifier (Op Amp) manufactured by Microchip Technology (Microchip). Integrated Circuit Operational Amplifier Differential 1 Circuit in 16-Pin QFN Package, housed in a compact 16-QFN (3x3) package.
Key Technical Specifications
- Output Type: Differential, Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 16-VFQFN Exposed Pad
- Device Package: 16-QFN (3x3)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
