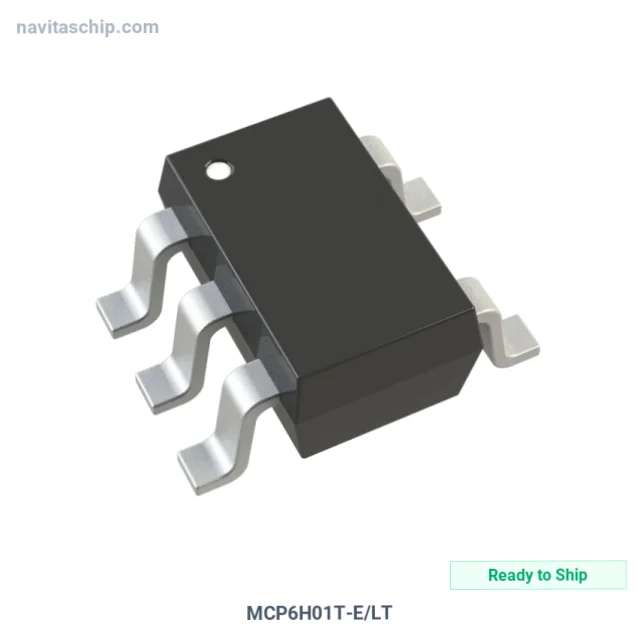

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP6H01T-E/LT |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-3046663 |
| Description | IC OPAMP GP 1 CIRCUIT SC70-5 |
| Spec | 5-TSSOP, SC-70-5, SOT-353 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.8V/µs |
| Gain Bandwidth Product | 1.2 MHz |
| Current - Input Bias | 10 pA |
| Voltage - Input Offset | 700 µV |
| Current - Supply | 135µA |
| Voltage - Supply Span (Min) | 3.5 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP6H01T-E/LT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP6H01T-E/LT is an Operational Amplifier (Op Amp) manufactured by Microchip Technology (Microchip). Integrated Circuit Operational Amplifier General Purpose 1 Circuit in 70-Pin Sc Package-5, housed in a compact SC-70-5 package.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 5-TSSOP, SC-70-5, SOT-353
- Device Package: SC-70-5
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
