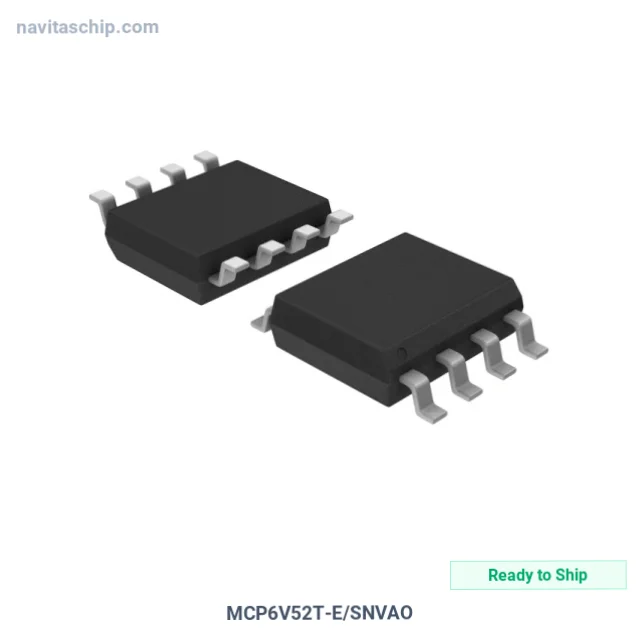

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP6V52T-E/SNVAO |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-19915867 |
| Description | DUAL, 45V ZERO-DRIFT OP AMP, E T |
| Spec | 8-SOIC (0.154", 3.90mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Chopper (Zero-Drift) |
| Number of Circuits | 2 |
| Output Type | Single Ended, Rail-to-Rail |
| Slew Rate | 1.2V/µs |
| Gain Bandwidth Product | 2 MHz |
| Current - Input Bias | 60 pA |
| Voltage - Input Offset | 2.4 µV |
| Current - Supply | 470µA (x2 Channels) |
| Current - Output / Channel | 46 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 45 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP6V52T-E/SNVAO Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP6V52T-E/SNVAO is an Operational Amplifier (Op Amp) manufactured by Microchip Technology (Microchip). Dual, housed in a compact 8-SOIC package.
Facing INA-series current sense amplifier allocation squeezed by EV charging and battery management demand surge? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Single Ended, Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width)
- Device Package: 8-SOIC
Applications
Designed for:
- precision op amp with low input offset voltage, low drift and high CMRR for instrumentation
- high-speed op amp with wide gain-bandwidth product for active filter and ADC driver stages
- high-side and low-side current sensing for lithium battery packs, BMS and brushless motor phase monitoring
- photodiode transimpedance amplification, active filter design and analog computational stages in optical sensing
Why Choose NavitasChip for MCP6V52T-E/SNVAO?
NavitasChip offers cost-saving procurement for the MCP6V52T-E/SNVAO and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for MCP6V52T-E/SNVAO, serving customers in UAE, India, and worldwide.
MCP6V52T-E/SNVAO - Check our competitive price now.
