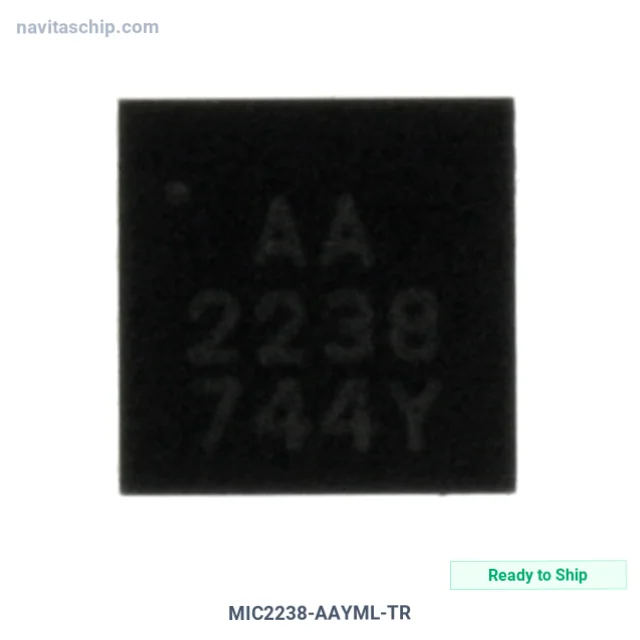

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MIC2238-AAYML-TR |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-1679651 |
| Description | IC REG BUCK ADJ 800MA DL 12MLF |
| Spec | 12-VFDFN Exposed Pad, 12-MLF® |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 800mA |
| Frequency - Switching | 2.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 12-MLF™ (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MIC2238-AAYML-TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MIC2238-AAYML-TR is a DC-DC Switching Voltage Regulator manufactured by Microchip Technology (Microchip). Integrated Circuit Regulator Buck Adjustable 800ma Dual 12mlf, housed in a compact 12-MLF™ (4x4) package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 12-VFDFN Exposed Pad, 12-MLF®
- Device Package: 12-MLF™ (4x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
