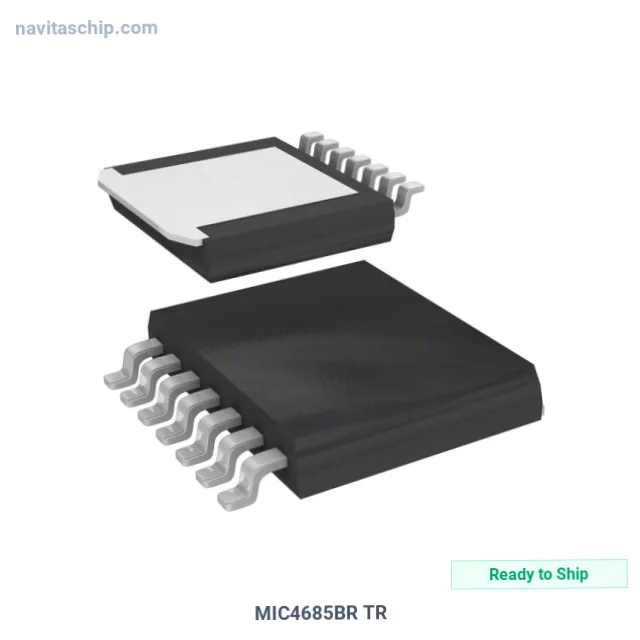

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MIC4685BR TR |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-1030045 |
| Description | IC REG BUCK ADJ 3A 7SPAK |
| Spec | SPAK-7 (7 Leads + Tab) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 1.235V |
| Voltage - Output (Max) | 28.2V |
| Current - Output | 3A |
| Frequency - Switching | 200kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 7-SPAK |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MIC4685BR TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MIC4685BR TR is a DC-DC Switching Voltage Regulator manufactured by Microchip Technology (Microchip). Integrated Circuit Regulator Buck Adjustable 3a 7spak, housed in a compact 7-SPAK package. Supplied in Tape and Reel packaging for automated assembly.
Don't let hard-to-find legacy DC-DC converters with original date codes and traceability slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: SPAK-7 (7 Leads + Tab)
- Device Package: 7-SPAK
Applications
Critical part of:
- embedded systems
- boost converter and step-up power conversion
- ultra-low quiescent current for always-on battery-powered devices
Why Choose NavitasChip for MIC4685BR TR?
NavitasChip offers wholesale pricing advantages for the MIC4685BR TR and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for MIC4685BR TR, serving customers in Singapore, Taiwan, and worldwide.
MIC4685BR TR - Upload your BOM for fast pricing.
