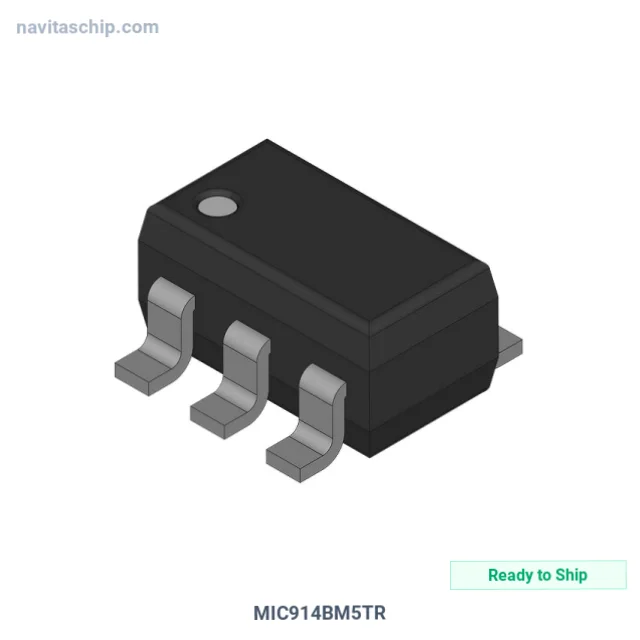

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MIC914BM5TR |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-12119183 |
| Description | IC OPAMP VFB 1 CIRCUIT SOT23-5 |
| Spec | SC-74A, SOT-753 |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Microchip Technology |
| Package | Bulk |
| Product Status | Active |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 |
| Slew Rate | 500V/µs |
| Gain Bandwidth Product | 350 MHz |
| -3db Bandwidth | 240 MHz |
| Current - Input Bias | 5.5 µA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 4.2mA |
| Current - Output / Channel | 90 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 18 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MIC914BM5TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MIC914BM5TR is an Operational Amplifier (Op Amp) manufactured by Microchip Technology (Microchip). Integrated Circuit Operational Amplifier Vfb 1 Circuit in 5-Pin SOT23 Package, housed in a compact SOT-23-5 package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: SC-74A, SOT-753
- Device Package: SOT-23-5
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
