| Manufacturer Product Number | PIC12C509A/JW |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-273439 |
| Description | IC MCU 8BIT 1.5KB EPROM/UV 8CDIP |
| Spec | 8-CDIP (0.300\ |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Microchip Technology |
| Package | Tube |
| Product Status | Obsolete |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 4MHz |
| Peripherals | POR, WDT |
| Number of I/O | 5 |
| Program Memory Size | 1.5KB (1K x 12) |
| Program Memory Type | EPROM, UV |
| RAM Size | 41 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-CDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology PIC12C509A/JW Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

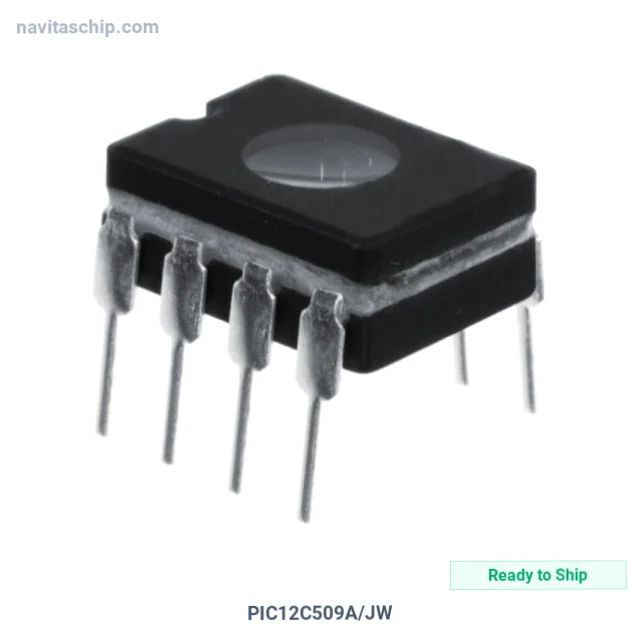

The PIC12C509A/JW is a Microcontroller (MCU) manufactured by Microchip Technology (Microchip). Integrated Circuit Microcontroller 8bit 1.5kb Rom/uv 8cdip, housed in a compact 8-CDIP package.
Don't let microcontroller shortage slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Through Hole
- Package: 8-CDIP (0.300\
- Device Package: 8-CDIP
- RoHS Compliant
Applications
Designed for:
- IoT devices
- industrial automation
- consumer electronics
- wearable devices
Why Choose NavitasChip for PIC12C509A/JW?
NavitasChip offers competitive market pricing for the PIC12C509A/JW and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Need PIC12C509A/JW urgently? We maintain buffer stock across multiple global locations.
PIC12C509A/JW - Inquire for bulk discount.
