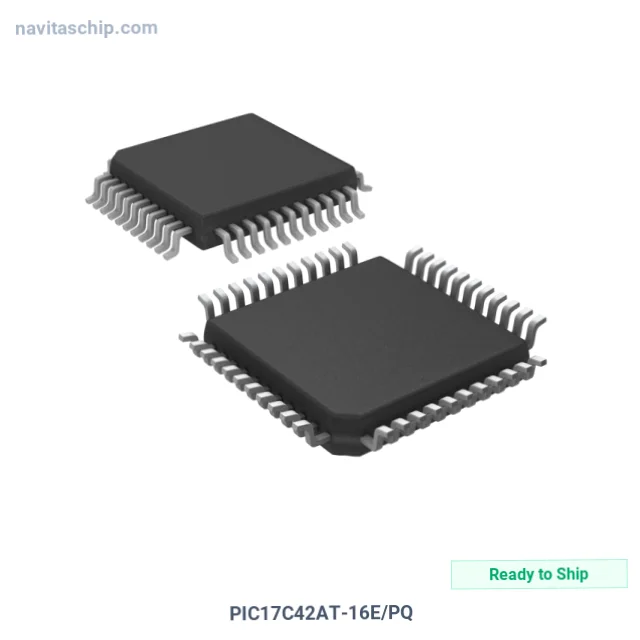

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PIC17C42AT-16E/PQ |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-321750 |
| Description | IC MCU 8BIT 4KB OTP 44MQFP |
| Spec | 44-QFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 33 |
| Program Memory Size | 4KB (2K x 16) |
| Program Memory Type | OTP |
| RAM Size | 232 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 6V |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-MQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology PIC17C42AT-16E/PQ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PIC17C42AT-16E/PQ is a Microcontroller (MCU) manufactured by Microchip Technology (Microchip). Integrated Circuit Microcontroller 8bit 4kb Overtemperature Protection 44mqfp, housed in a compact 44-MQFP (10x10) package. Automotive qualified (AEC-Q100/Q101).
Facing microcontroller shortage? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 44-QFP
- Device Package: 44-MQFP (10x10)
- RoHS Compliant
Applications
Essential component for:
- IoT devices
- industrial automation
- wearable devices
- industrial control
- smart home
Why Choose NavitasChip for PIC17C42AT-16E/PQ?
NavitasChip offers cost-saving procurement for the PIC17C42AT-16E/PQ and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
PIC17C42AT-16E/PQ sourced and shipped via our Asia-Pacific distribution network.
PIC17C42AT-16E/PQ - Upload your BOM for fast pricing.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
