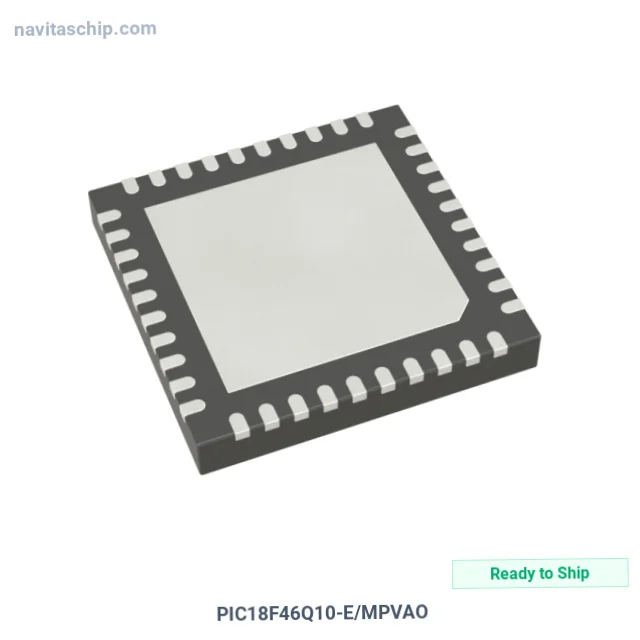

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PIC18F46Q10-E/MPVAO |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-26728563 |
| Description | 64KB FLASH, 4KB RAM, 256B EE, 10 |
| Spec | 40-VFQFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Microchip Technology |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tube |
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 64MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, HLVD, POR, PWM, WDT |
| Number of I/O | 36 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 3.53K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 35x10b SAR; D/A 1x5b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 40-QFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology PIC18F46Q10-E/MPVAO Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PIC18F46Q10-E/MPVAO is a Microcontroller (MCU) manufactured by Microchip Technology (Microchip). 64kb Flash Memory, housed in a compact 40-QFN (5x5) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 40-VFQFN Exposed Pad
- Device Package: 40-QFN (5x5)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
