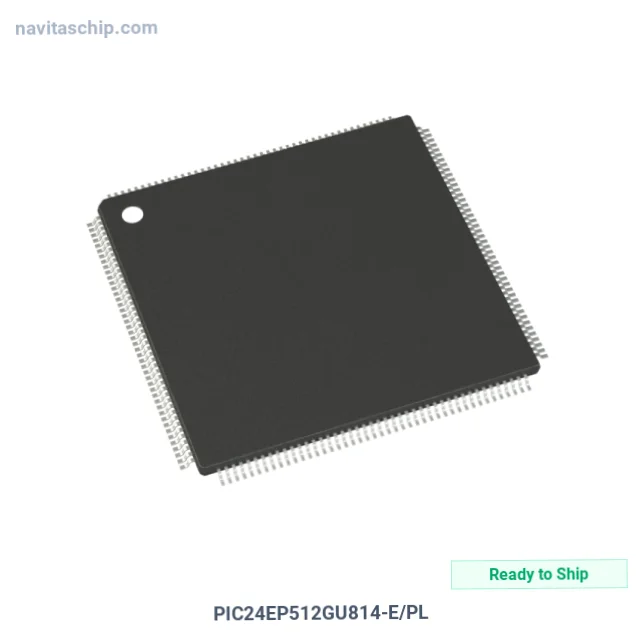

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PIC24EP512GU814-E/PL |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-2775769 |
| Description | IC MCU 16BIT 512KB FLASH 144LQFP |
| Spec | 144-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 60 MIPs |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 122 |
| Program Memory Size | 512KB (170K x 24) |
| Program Memory Type | FLASH |
| RAM Size | 24K x 16 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 32x10b/12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology PIC24EP512GU814-E/PL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PIC24EP512GU814-E/PL is a Microcontroller (MCU) manufactured by Microchip Technology (Microchip). Integrated Circuit Microcontroller 16bit 512kb Flash Memory in 144-Pin LQFP Package, housed in a compact 144-LQFP (20x20) package.
Facing annual BOM cost reduction pressure? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 144-LQFP
- Device Package: 144-LQFP (20x20)
- RoHS Compliant
Applications
Widely adopted for:
- consumer electronics
- wearable devices
- industrial control
Why Choose NavitasChip for PIC24EP512GU814-E/PL?
NavitasChip offers cost-effective alternative to authorized distributors for the PIC24EP512GU814-E/PL and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
