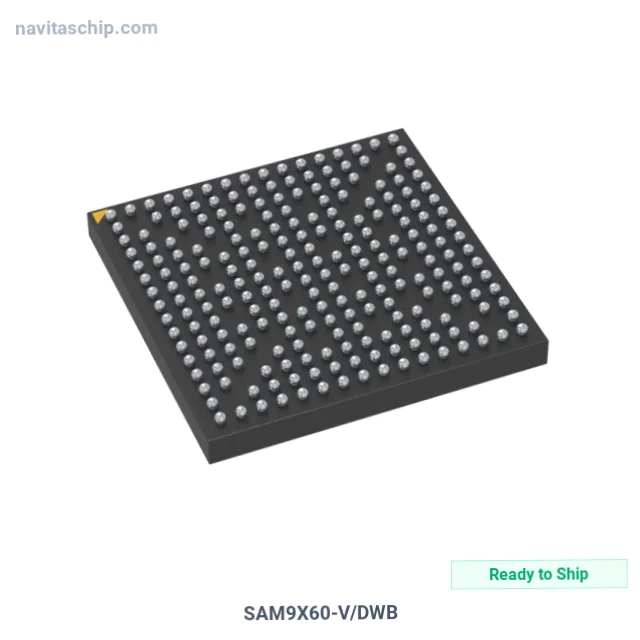

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SAM9X60-V/DWB |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-10494942 |
| Description | IC MPU SAM9X60 600MHZ 228TFBGA |
| Spec | 228-TFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM926EJ-S |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 600MHz |
| RAM Controllers | LPDDR, LPSDR, DDR2, SDR, SRAM |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keyboard, LCD, Touchscreen |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 (3) |
| Voltage - I/O | 3.3V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Security Features | Boot Security, Cryptography, Memory Scrambling, Secure JTAG, Secure Key Storage, Secure RTC, Tamper Pins |
| Mounting Type | Surface Mount |
| Supplier Device Package | 228-TFBGA (11x11) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology SAM9X60-V/DWB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SAM9X60-V/DWB is an Embedded Processor manufactured by Microchip Technology (Microchip). Integrated Circuit Microprocessor Sam9x60 operating at 600MHz in 228-Pin BGA Package, housed in a compact 228-TFBGA (11x11) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 228-TFBGA
- Device Package: 228-TFBGA (11x11)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
