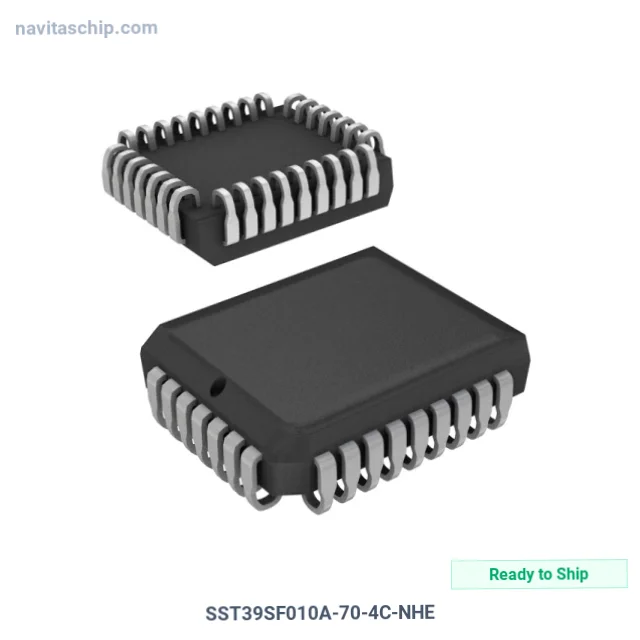

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SST39SF010A-70-4C-NHE |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-2297825 |
| Description | IC FLASH 1MBIT PARALLEL 32PLCC |
| Spec | 32-LCC (J-Lead) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Microchip Technology |
| Package | Tube |
| Product Status | Active |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH |
| Memory Size | 1Mbit |
| Memory Organization | 128K x 8 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 20µs |
| Access Time | 70 ns |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-PLCC (11.43x13.97) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology SST39SF010A-70-4C-NHE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SST39SF010A-70-4C-NHE is a Memory IC manufactured by Microchip Technology (Microchip). Integrated Circuit Flash Memory 1mbit Parallel 32plcc, housed in a compact 32-PLCC (11.43x13.97) package, with 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 32-LCC (J-Lead)
- Device Package: 32-PLCC (11.43x13.97)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
