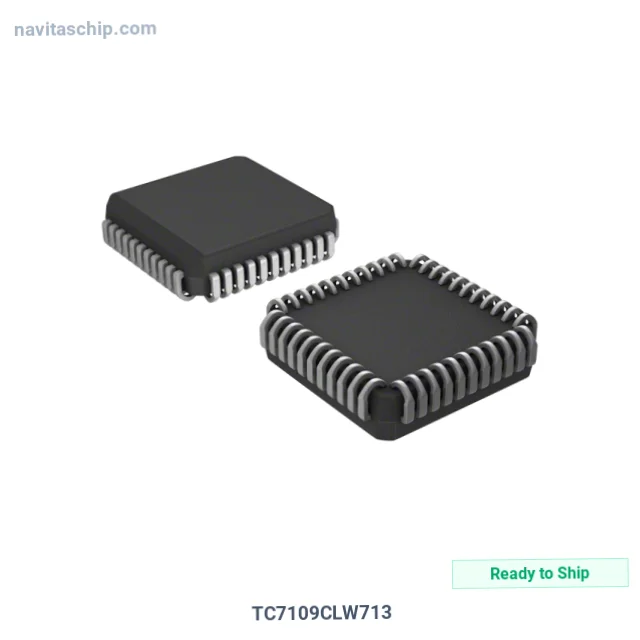

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TC7109CLW713 |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-442639 |
| Description | IC ADC 12BIT DUAL SLOPE 44PLCC |
| Spec | 44-LCC (J-Lead) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 30 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | ADC |
| Number of A/D Converters | 1 |
| Architecture | Dual Slope |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology TC7109CLW713 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TC7109CLW713 is an Analog-to-Digital Converter (ADC) manufactured by Microchip Technology (Microchip). Integrated Circuit Analog-To-Digital Converter 12bit Dual Slope 44plcc, housed in a compact 44-PLCC (16.59x16.59) package.
Struggling with long factory lead times? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 44-LCC (J-Lead)
- Device Package: 44-PLCC (16.59x16.59)
Applications
Designed for:
- embedded systems
- professional equipment
- 20-bit and 24-bit ultra-high-resolution ADC for metrology and bridge sensor readout
- test and measurement instrumentation and bench data acquisition equipment
Why Choose NavitasChip for TC7109CLW713?
NavitasChip offers cost-effective alternative to authorized distributors for the TC7109CLW713 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Multiple origin options for TC7109CLW713 to optimize delivery time and customs clearance.
TC7109CLW713 - Request a quote today.
