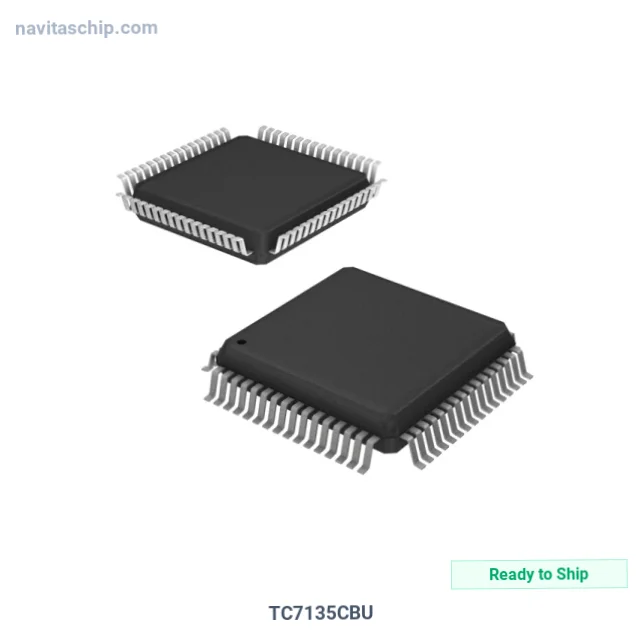

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TC7135CBU |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-442334 |
| Description | IC DRVR 7 SEG 4 1/2 DIGIT 64QFP |
| Spec | 64-BQFP |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Microchip Technology |
| Package | Tube |
| Product Status | Obsolete |
| Voltage - Supply | 4V ~ 6V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-MQFP (14x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology TC7135CBU Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TC7135CBU is an Audio Codec and Special-Purpose Data Converter IC manufactured by Microchip Technology (Microchip). Integrated Circuit Driver 7 Seg 4 1/2 Digit in 64-Pin QFP Package, housed in a compact 64-MQFP (14x14) package, with 4V ~ 6V supply voltage.
Key Technical Specifications
- Supply Voltage: 4V ~ 6V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 64-BQFP
- Device Package: 64-MQFP (14x14)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
