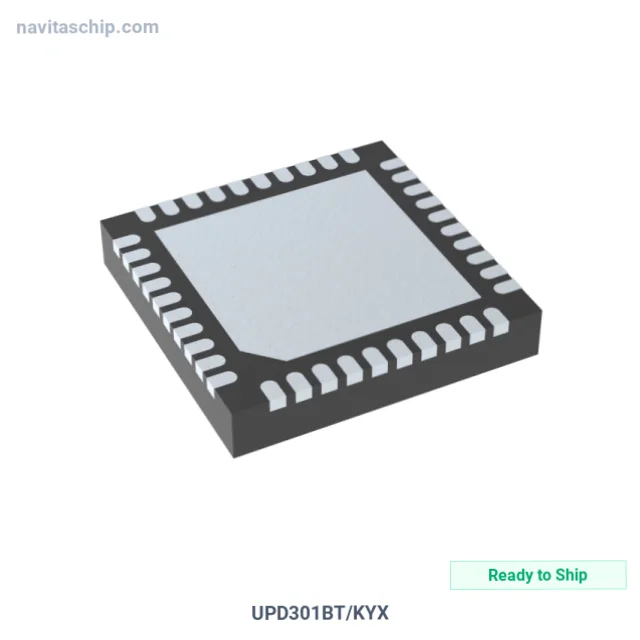

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | UPD301BT/KYX |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-12331984 |
| Description | STAND-ALONE USB TYPE-C/PD PORT C |
| Spec | 40-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Protocol | USB |
| Function | Controller |
| Interface | SPI |
| Standards | USB 3.0 |
| Voltage - Supply | 1.62V ~ 1.98V, 2.97V ~ 3.63V, 4.75V ~ 5.25V |
| Current - Supply | 23.84mA |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Supplier Device Package | 40-VQFN (6x6) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology UPD301BT/KYX Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The UPD301BT/KYX is an Interface Controller IC manufactured by Microchip Technology (Microchip). Stand-Alone USB Type-C/pd Port C, housed in a compact 40-VQFN (6x6) package, with 1.62V ~ 1.98V, 2.97V ~ 3.63V, 4.75V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.62V ~ 1.98V, 2.97V ~ 3.63V, 4.75V ~ 5.25V
- Interface: SPI
- Operating Temperature: 0°C ~ 70°C (TA)
- Package: 40-VFQFN Exposed Pad
- Device Package: 40-VQFN (6x6)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
