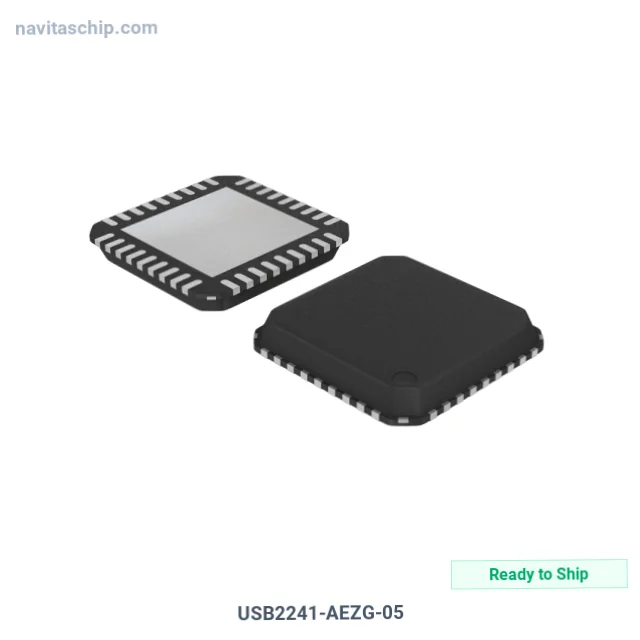

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | USB2241-AEZG-05 |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-1972566 |
| Description | IC MEDIA CTRLR USB 2.0 36-QFN |
| Spec | 36-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Obsolete |
| Protocol | USB |
| Function | Controller |
| Interface | Parallel |
| Standards | USB 2.0 |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Supply | 135mA |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 36-QFN-EP (6x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology USB2241-AEZG-05 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The USB2241-AEZG-05 is an Interface Controller IC manufactured by Microchip Technology (Microchip). Integrated Circuit Media Ctrlr USB 2.0 in 36-Pin QFN Package, housed in a compact 36-QFN-EP (6x6) package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Interface: Parallel
- Operating Temperature: 0°C ~ 70°C
- Package: 36-VFQFN Exposed Pad
- Device Package: 36-QFN-EP (6x6)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
