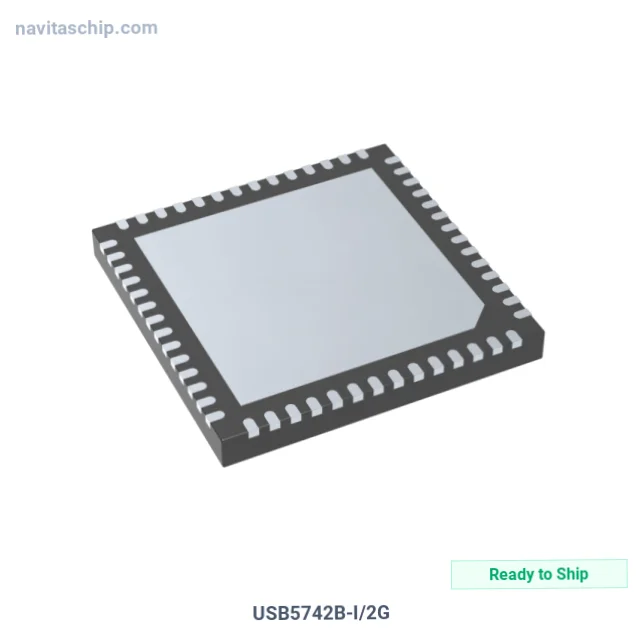

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | USB5742B-I/2G |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-16500106 |
| Description | IC HUB CTLR USB 2PORT 56SQFN |
| Spec | 56-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Protocol | USB |
| Function | Hub Controller |
| Interface | SMBus, SPI |
| Standards | USB 2.0, USB 3.2 |
| Voltage - Supply | 1.08V ~ 1.32V, 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 56-VQFN (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology USB5742B-I/2G Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The USB5742B-I/2G is an Interface Controller IC manufactured by Microchip Technology (Microchip). Integrated Circuit Hub Ctlr USB 2port 56sqfn, housed in a compact 56-VQFN (7x7) package, with 1.08V ~ 1.32V, 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.08V ~ 1.32V, 3V ~ 3.6V
- Interface: SMBus, SPI
- Operating Temperature: -40°C ~ 85°C (TA)
- Package: 56-VFQFN Exposed Pad
- Device Package: 56-VQFN (7x7)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
