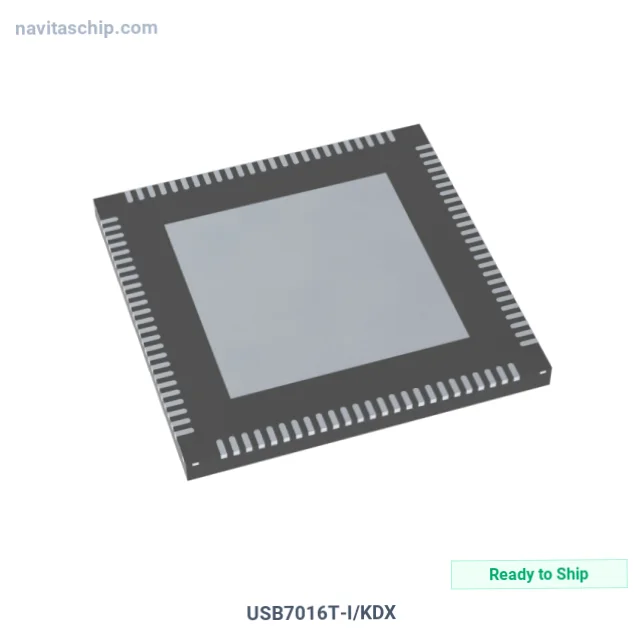

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | USB7016T-I/KDX |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-15189146 |
| Description | USB3.1 GEN1 HUB WITHOUT PD, 1CC, |
| Spec | 100-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Protocol | USB |
| Function | Hub Controller |
| Interface | GPIO, I2C, SPI, USB |
| Standards | USB 2.0, USB 3.2 |
| Voltage - Supply | 1.08V ~ 1.32V, 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 100-VQFN (12x12) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology USB7016T-I/KDX Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The USB7016T-I/KDX is an Interface Controller IC manufactured by Microchip Technology (Microchip). USB3.1 Gen1 Hub Without Pd, housed in a compact 100-VQFN (12x12) package, with 1.08V ~ 1.32V, 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.08V ~ 1.32V, 3V ~ 3.6V
- Interface: GPIO, I2C, SPI, USB
- Operating Temperature: -40°C ~ 85°C (TA)
- Package: 100-VFQFN Exposed Pad
- Device Package: 100-VQFN (12x12)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
