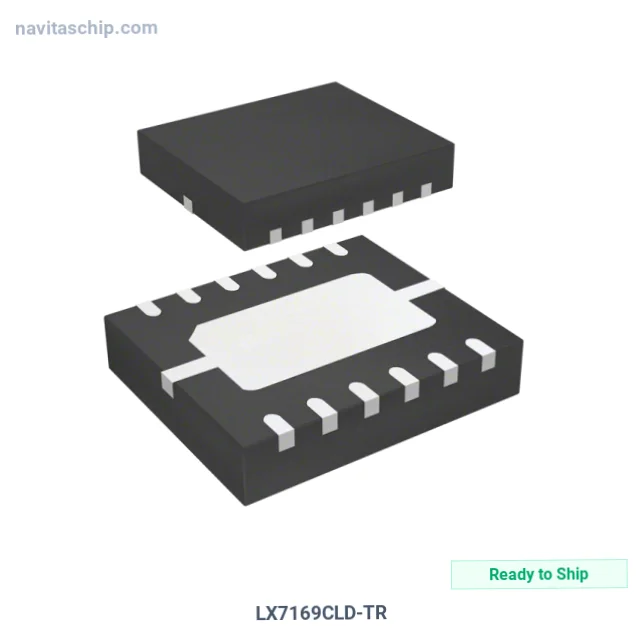

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LX7169CLD-TR |
| Manufacturer | Microsemi Corporation |
| NavitasChip Part Number | NAVI-4146501 |
| Description | IC REG BUCK ADJ 3A SYNC 12DFN |
| Spec | 12-WFDFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Microsemi Corporation |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 3A |
| Frequency - Switching | 3MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -10°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microsemi Corporation LX7169CLD-TR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LX7169CLD-TR is a DC-DC Switching Voltage Regulator manufactured by Microsemi Corporation (Microsemi). Integrated Circuit Regulator Buck Adjustable 3a Synchronous in 12-Pin DFN Package, housed in a compact 12-WFDFN Exposed Pad package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -10°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 12-WFDFN Exposed Pad
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
