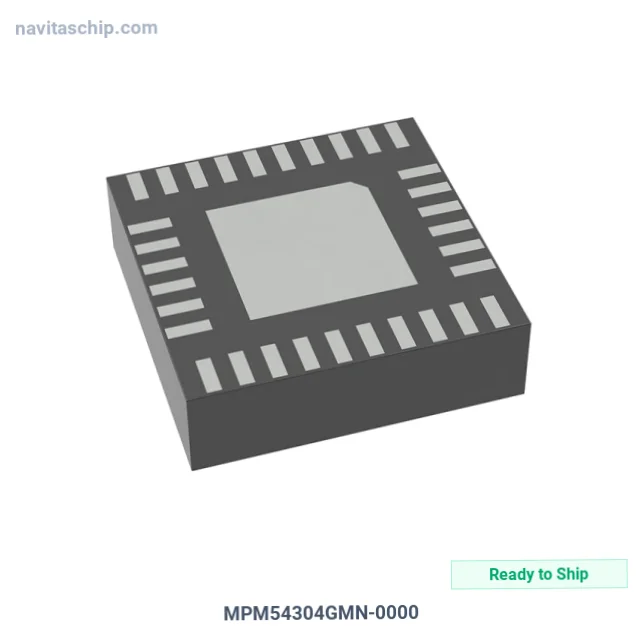

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MPM54304GMN-0000 |
| Manufacturer | Monolithic Power Systems Inc. |
| NavitasChip Part Number | NAVI-11482946 |
| Description | IC REG BCK ADJ 2A/3A QUAD 33LGA |
| Spec | 33-PowerFLGA Module |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Monolithic Power Systems Inc. |
| Package | Tray |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 4 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 0.55V |
| Voltage - Output (Max) | 5.4V |
| Current - Output | 2A, 3A |
| Frequency - Switching | 500kHz ~ 1.6MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 33-LGA (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Monolithic Power Systems Inc. MPM54304GMN-0000 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MPM54304GMN-0000 is a DC-DC Switching Voltage Regulator manufactured by Monolithic Power Systems Inc. (MPS). Integrated Circuit Regulator Bck Adjustable 2a/3a Quad in 33-Pin Lga Package, housed in a compact 33-LGA (7x7) package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 33-PowerFLGA Module
- Device Package: 33-LGA (7x7)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
