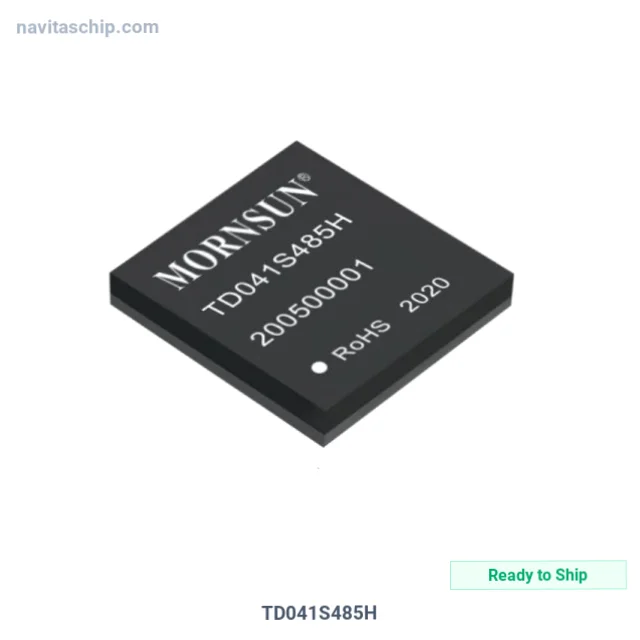

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TD041S485H |
| Manufacturer | Mornsun America, LLC |
| NavitasChip Part Number | NAVI-13531095 |
| Description | IC TRANSCEIVER HALF 1/1 16DFN |
| Spec | 16-DFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Mornsun America, LLC |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Not For New Designs |
| Type | Transceiver |
| Protocol | RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 20 mV |
| Data Rate | 1Mbps |
| Voltage - Supply | 2.375V, 4.5V ~ 5.5 V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-DFN (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Mornsun America, LLC TD041S485H Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TD041S485H is an Interface Driver Receiver Transceiver IC manufactured by Mornsun America, LLC. Integrated Circuit Transceiver Half 1/1 in 16-Pin DFN Package, housed in a compact 16-DFN (10x10) package, with 2.375V, 4.5V ~ 5.5 V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V, 4.5V ~ 5.5 V
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 16-DFN
- Device Package: 16-DFN (10x10)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
