Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Motorola |
| Package | Bulk |
| Product Status | Active |
| Core Processor | 56800 |
| Core Size | 16-Bit |
| Speed | 80MHz |
| Connectivity | SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 11 |
| Program Memory Size | 20KB (10K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 2K x 16 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 8x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LQFP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Motorola DSP56F801FA80 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

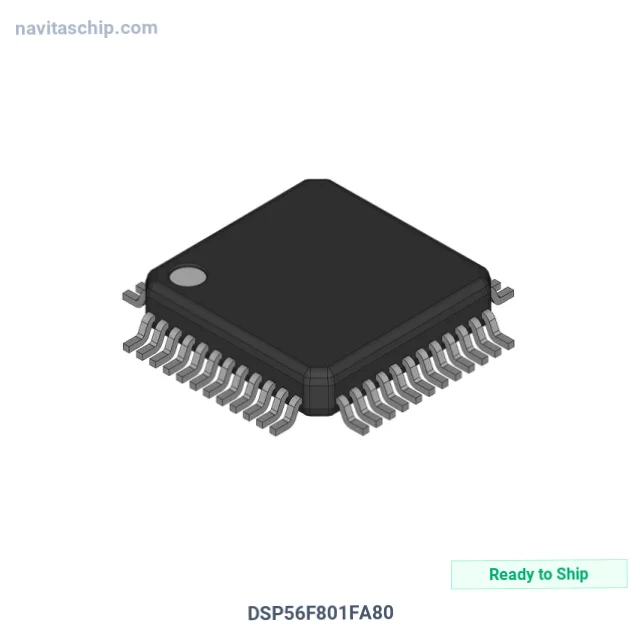

The DSP56F801FA80 is a Microcontroller (MCU) manufactured by Motorola. Integrated Circuit Microcontroller 16bit 20kb Flash Memory in 48-Pin LQFP Package, housed in a compact 48-LQFP (7x7) package. Originally developed by Maxim Integrated, this component continues to be fully supported.
Facing challenging Target Price (TP) requirements? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 48-LQFP
- Device Package: 48-LQFP (7x7)
Applications
Perfect for:
- industrial automation
- professional equipment
- wearable devices
- industrial control
Why Choose NavitasChip for DSP56F801FA80?
NavitasChip offers competitive market pricing for the DSP56F801FA80 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Bulk or Custom Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
DSP56F801FA80 sourced and shipped via our Asia-Pacific distribution network.
DSP56F801FA80 - Request a quote today.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
