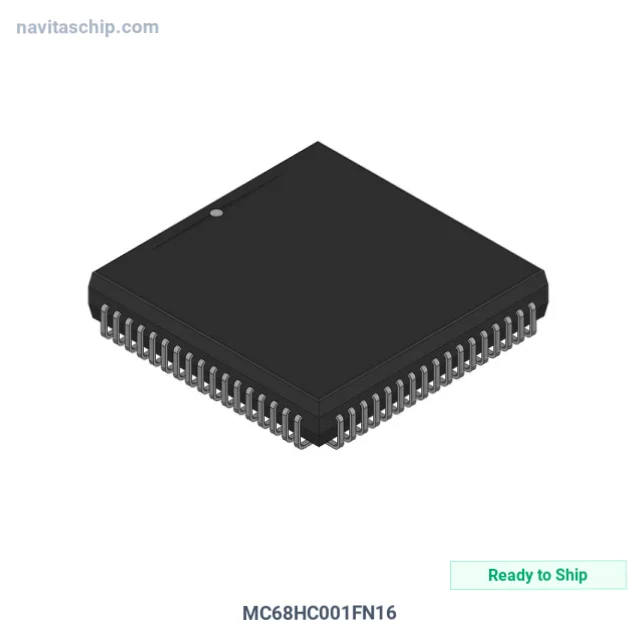

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Motorola |
| Package | Bulk |
| Product Status | Active |
| Core Processor | MC68HC001 |
| Number of Cores/Bus Width | 1 Core, 16/32-Bit |
| Speed | 16MHz |
| Graphics Acceleration | No |
| Voltage - I/O | 5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 68-PLCC (24.21x24.21) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Motorola MC68HC001FN16 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC68HC001FN16 is an Embedded Processor manufactured by Motorola. Integrated Circuit Microprocessor M680x0 operating at 16MHz 68plcc, housed in a compact 68-PLCC (24.21x24.21) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 68-LCC (J-Lead)
- Device Package: 68-PLCC (24.21x24.21)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
