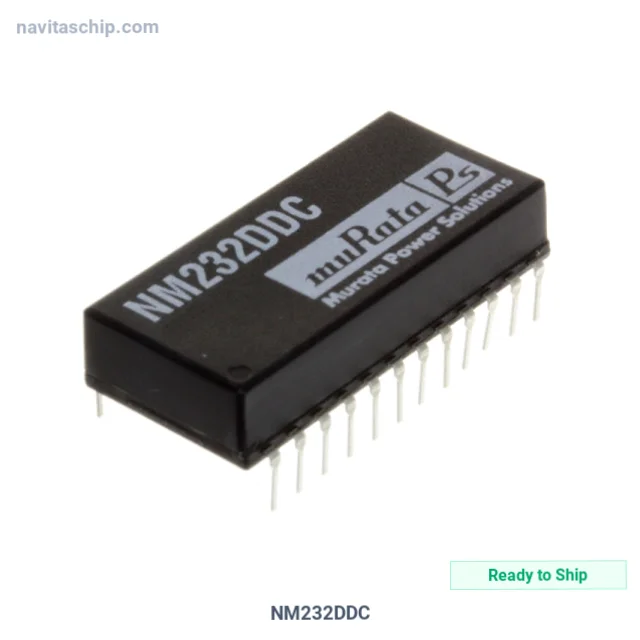

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | NM232DDC |
| Manufacturer | Murata Power Solutions Inc. |
| NavitasChip Part Number | NAVI-1927005 |
| Description | IC TRANSCEIVER FULL 2/2 24DIP |
| Spec | 24-DIP (0.667", 16.95mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Murata Power Solutions Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Receiver Hysteresis | 500 mV |
| Data Rate | 9.6kbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 24-DIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Murata Power Solutions Inc. NM232DDC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NM232DDC is an Interface Driver Receiver Transceiver IC manufactured by Murata Power Solutions Inc.. Integrated Circuit Transceiver Full 2/2 in 24-Pin DIP Package, housed in a compact 24-DIP package, with 4.5V ~ 5.5V supply voltage. Commercial temperature range (0°C to +70°C).
In today's market, hard-to-find LVDS and Ethernet PHY transceivers with original date codes and traceability can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 24-DIP (0.667", 16.95mm)
- Device Package: 24-DIP
- RoHS Compliant
Applications
Engineered specifically for:
- EV charging infrastructure communication interfaces
- smart grid metering and substation communication
- isolated transceivers for safety-critical industrial communication
Why Choose NavitasChip for NM232DDC?
NavitasChip offers cost-effective alternative to authorized distributors for the NM232DDC and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Global supply network for NM232DDC with distribution hubs in Hong Kong, Singapore, and Shenzhen.
NM232DDC - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
