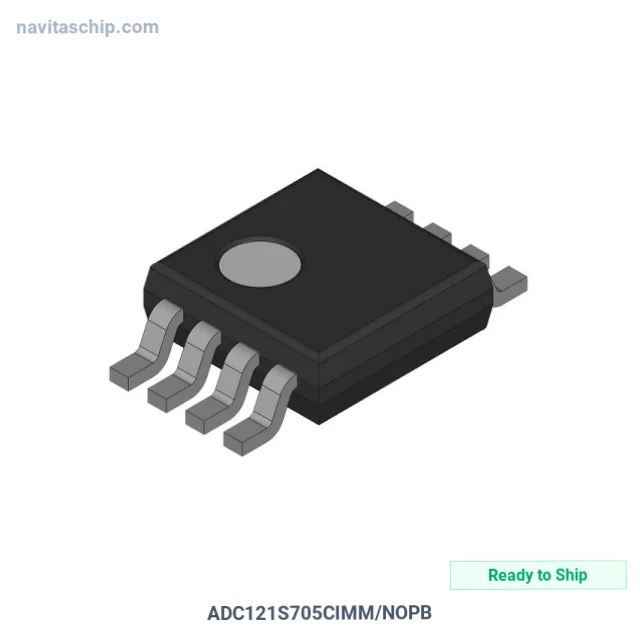

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADC121S705CIMM/NOPB |
| Manufacturer | National Semiconductor |
| NavitasChip Part Number | NAVI-15639258 |
| Description | ADC121S705 12-BIT, 500 KSPS TO 1 |
| Spec | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | National Semiconductor |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI, DSP |
| Configuration | S/H-ADC |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 8-VSSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | National Semiconductor ADC121S705CIMM/NOPB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADC121S705CIMM/NOPB is an Analog-to-Digital Converter (ADC) manufactured by National Semiconductor (NSC). ADC121s705 12-Bit, housed in a compact 8-VSSOP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Device Package: 8-VSSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
