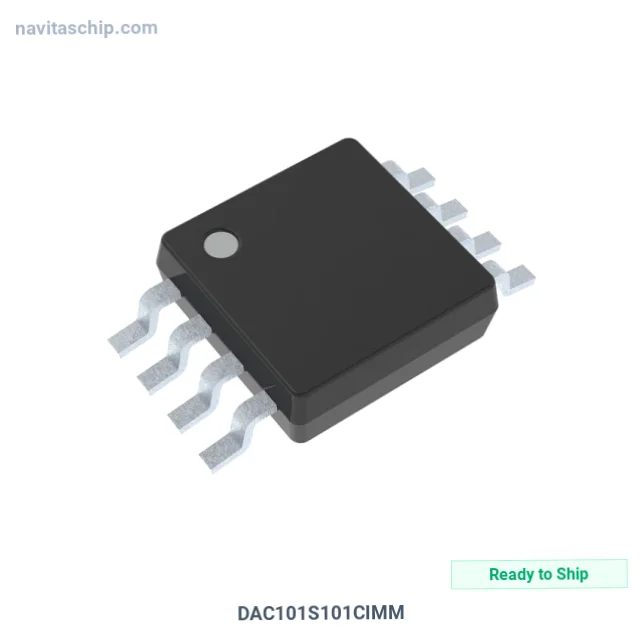

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DAC101S101CIMM |
| Manufacturer | National Semiconductor |
| NavitasChip Part Number | NAVI-12592367 |
| Description | IC DAC 10BIT V-OUT 8VSSOP |
| Spec | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | National Semiconductor |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 10 |
| Number of D/A Converters | 1 |
| Settling Time | 7.5µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.6, +0.15/-0.05 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 8-VSSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | National Semiconductor DAC101S101CIMM Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DAC101S101CIMM is a Digital-to-Analog Converter (DAC) manufactured by National Semiconductor (NSC). Integrated Circuit Digital-To-Analog Converter 10bit V-Out 8vssop, housed in a compact 8-VSSOP package.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Device Package: 8-VSSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
