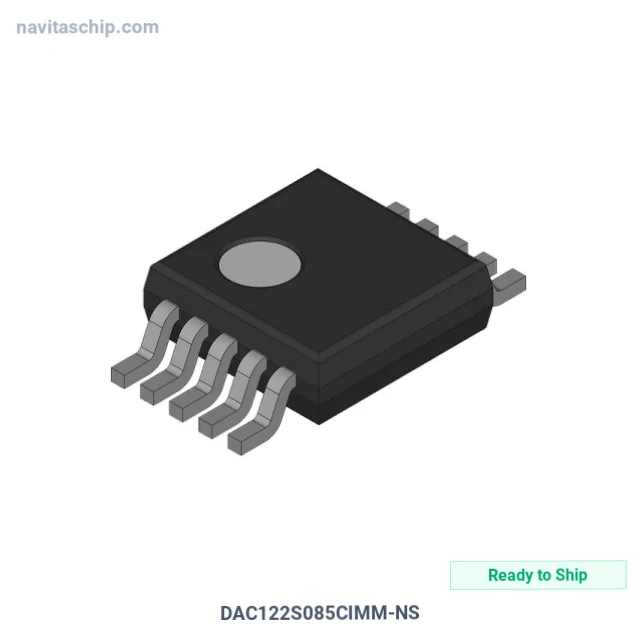

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DAC122S085CIMM-NS |
| Manufacturer | National Semiconductor |
| NavitasChip Part Number | NAVI-12655639 |
| Description | IC DAC 12BIT V-OUT 10VSSOP |
| Spec | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | National Semiconductor |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 6µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | DSP, Microwire, QSPI, SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±2.4, ±0.2 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 10-VSSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | National Semiconductor DAC122S085CIMM-NS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DAC122S085CIMM-NS is a Digital-to-Analog Converter (DAC) manufactured by National Semiconductor (NSC). Integrated Circuit Digital-To-Analog Converter 12bit V-Out 10vssop, housed in a compact 10-VSSOP package.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Device Package: 10-VSSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
