| Manufacturer Product Number | DS3896MX |
| Manufacturer | National Semiconductor |
| NavitasChip Part Number | NAVI-11558740 |

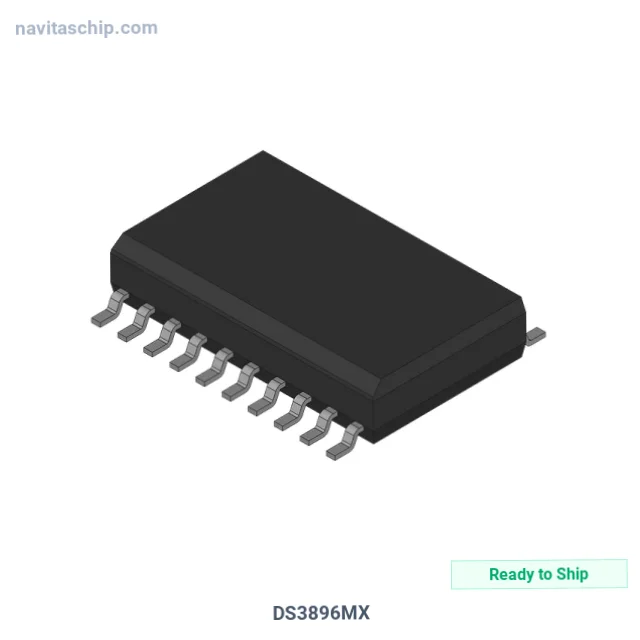

| Description | IC TRANSCEIVER FULL 8/8 20SOIC |
| Spec | 20-SOIC (0.295", 7.50mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | National Semiconductor |
| Package | Bulk |
| Product Status | Obsolete |
| Type | Transceiver |
| Number of Drivers/Receivers | 8/8 |
| Duplex | Full |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | National Semiconductor DS3896MX Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DS3896MX is an Interface Driver Receiver Transceiver IC manufactured by National Semiconductor (NSC). Integrated Circuit Transceiver Full 8/8 in 20-Pin SOIC Package, housed in a compact 20-SOIC package, with 4.75V ~ 5.25V supply voltage. Originally developed by Maxim Integrated.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 20-SOIC (0.295", 7.50mm Width)
- Device Package: 20-SOIC
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
