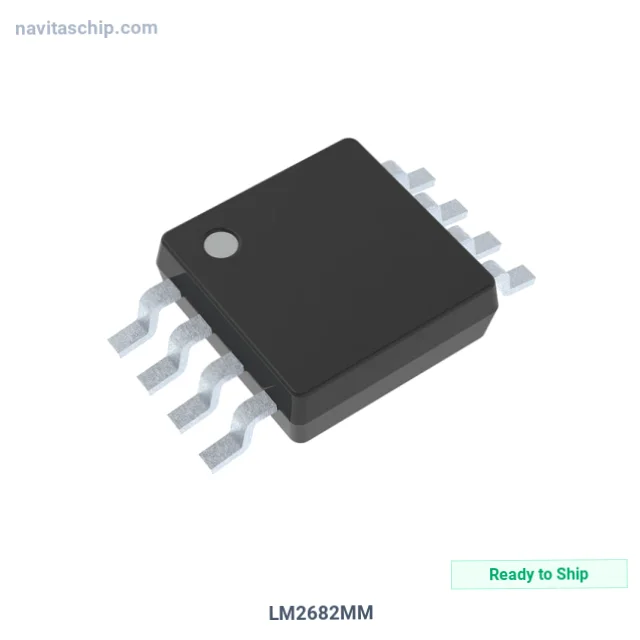

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LM2682MM |
| Manufacturer | National Semiconductor |
| NavitasChip Part Number | NAVI-12595409 |
| Description | IC REG CHRG PUMP INV 10MA 8VSSOP |
| Spec | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | National Semiconductor |
| Package | Bulk |
| Product Status | Active |
| Function | Ratiometric |
| Output Configuration | Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin |
| Current - Output | 10mA |
| Frequency - Switching | 6kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | National Semiconductor LM2682MM Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LM2682MM is a DC-DC Switching Voltage Regulator manufactured by National Semiconductor (NSC). Integrated Circuit Regulator Charger Pump Inverting 10ma 8vssop, housed in a compact 8-VSSOP package.
Key Technical Specifications
- Output Type: Fixed
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Device Package: 8-VSSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
