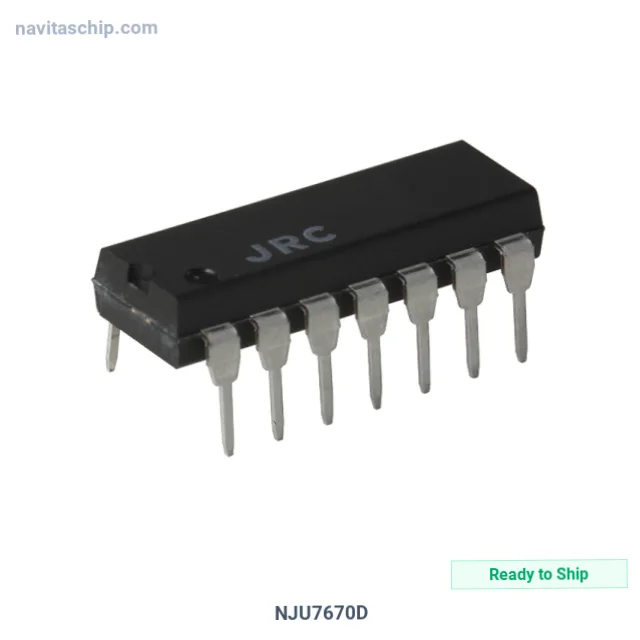

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | NJU7670D |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| NavitasChip Part Number | NAVI-805966 |
| Description | IC REG CHARGE PUMP NVIN 14DIP |
| Spec | 14-DIP |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Function | Ratiometric |
| Output Configuration | Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | -2.6V |
| Voltage - Input (Max) | -6V |
| Voltage - Output (Min/Fixed) | nVin |
| Current - Output | 20mA |
| Frequency - Switching | 2.5kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-DIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Nisshinbo Micro Devices Inc. NJU7670D Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NJU7670D is a DC-DC Switching Voltage Regulator manufactured by Nisshinbo Micro Devices Inc. (Nisshinbo). Integrated Circuit Regulator Charge Pump Nvin in 14-Pin DIP Package, housed in a compact 14-DIP package.
Key Technical Specifications
- Output Type: Fixed
- Operating Temperature: -20°C ~ 75°C (TA)
- Mounting: Through Hole
- Package: 14-DIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
